Features of Standalone Green Screen Wizard 7
All Versions

This document will discuss the features of Green Screen Wizard 6.0.  With this feature set, Green Screen Wizard will let your creativity fly, and expand your photography business.

Green Screen Wizard comes in three standalone versions:
o The Full Versionfor people that want a full featured green screen photography program
o The Pro Studio Editor Versionfor customers that demand the very best in green screen software
o The Pro Batch/Event Versionfor customes that need to do Event Photography or automate their Green Screen processing


This table lists all the features of Green Screen Wizard 6.0 and the versions they apply to:
Feature Full Pro Edit Pro Batch
Printing Yes Yes Yes
Exposure Yes Yes Yes
Color Yes Yes Yes
Scaling Yes Yes Yes
Rotation Yes Yes Yes
Combine Yes Yes Yes
Labels Yes Yes Yes
Transparent Background Yes Yes Yes
Clipping Yes Yes Yes
Greating Card Gen Yes Yes Yes
Pick Adjust Yes Yes Yes
Overlays Sandwich Overlay Sandwich Overlay Sandwich Overlay
Editor - Yes Yes
Pick Gallery - Yes Yes
Advanced Annotation - Yes Yes
Image and logo Loading - Yes Yes
Shadow Generator - Yes Yes
Special Effects - Black and White
Sepia
Silhouette
Blurred backgrounds
Black and White
Sepia
Silhouette
Blurred backgrounds
Batch Processing - - Yes
Batch Printing - - Yes
Email Sending - - Yes
Event Mode - - Yes


Green Screen Wizard 6.0 Full Features


Pick Adjust


Most of the time the Green Screen Wizard defaults will create a great image. There are times, depending on the how clean the background is and the nature of the foreground subject, that adjustments may need to be made. You can make these adjustments on the combine page but now Green Screen Wizard offers you a Adjustment Pick button on the Main Screen that will generate 12 images with various adjustment settings.



Printing

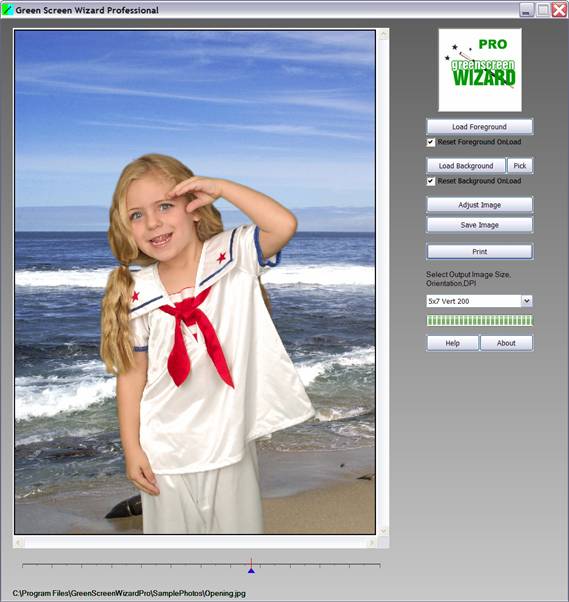

Green Screen Wizard has an integrated printing capability. Simply clicking the print button on the main screen will bring up the print selection dialog.

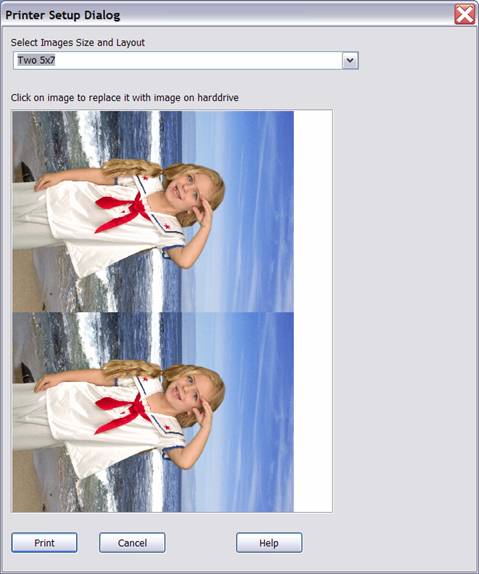

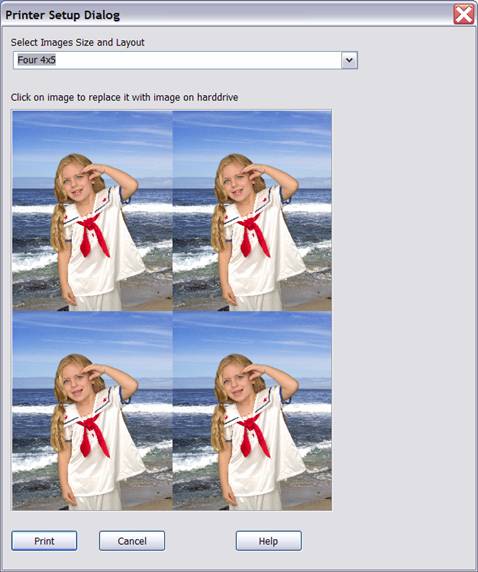

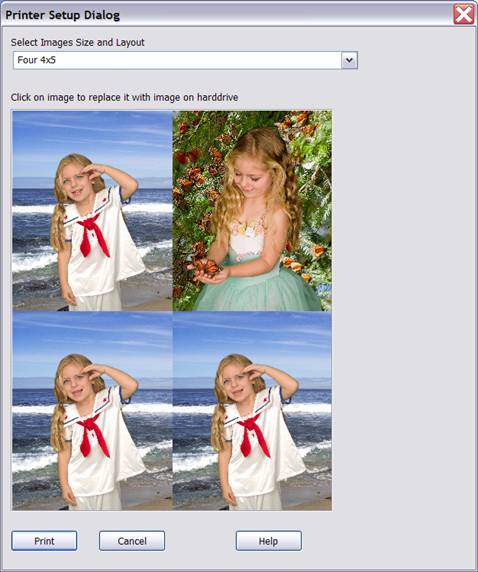

Here is the print selection dialog:

You many select a different size and layout using the image size and layout dialog.

By clicking on any of the images you can replace it with the image of your choice.

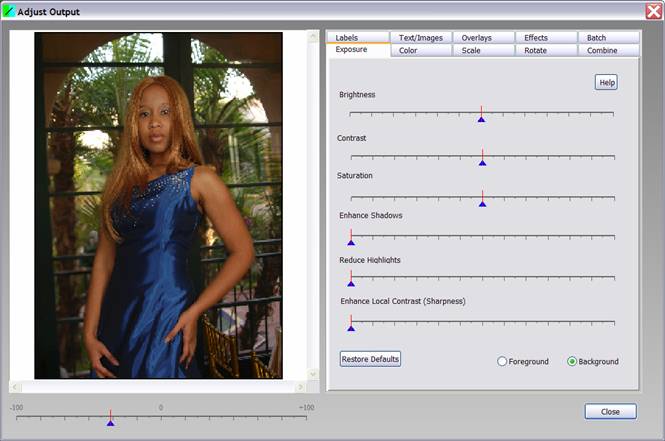

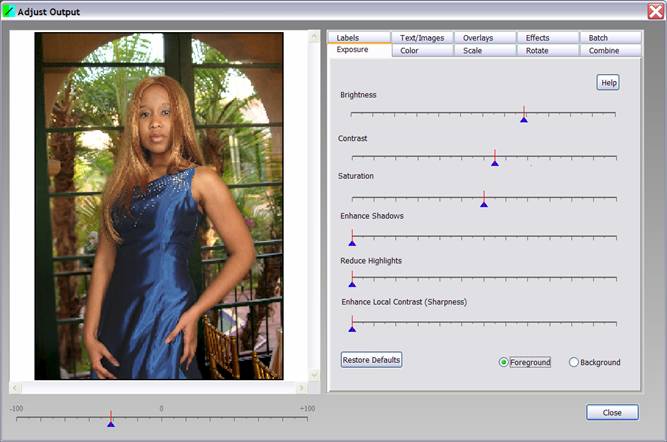

Exposure Dialog

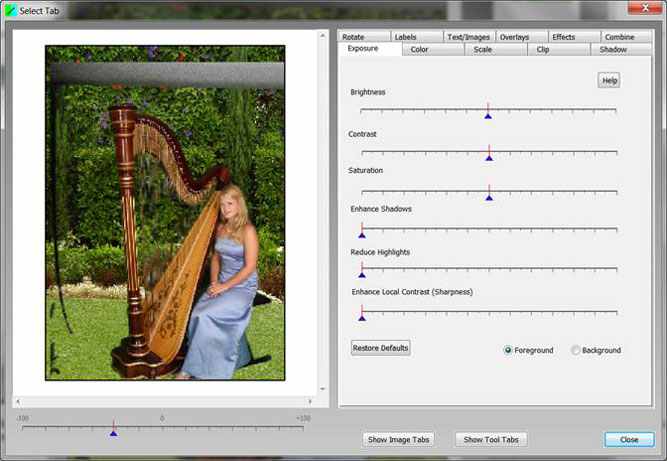

The exposure dialog will let you change the Brightness, Contrast and Saturation of the foreground and the background independently. Shadow enhancement and Highlights reduction is also available. This is an important feature as it is important to match the foreground and the background intensity.

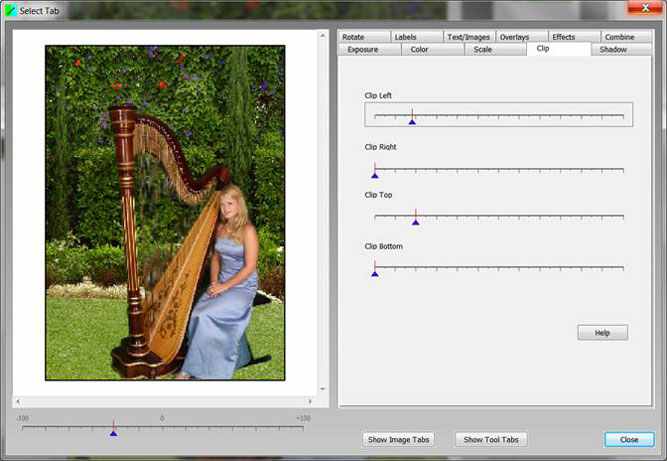

Clipping Dialog

Sometimes there are unwanted objects at the edges of an image. Usually this is poor lighting or the fact that the screen was not quite large enough to cover the image. The clipping feature of Green Screen Wizard allows you to clip off the edges of the image as shown below.

Before Clipping

After Clipping

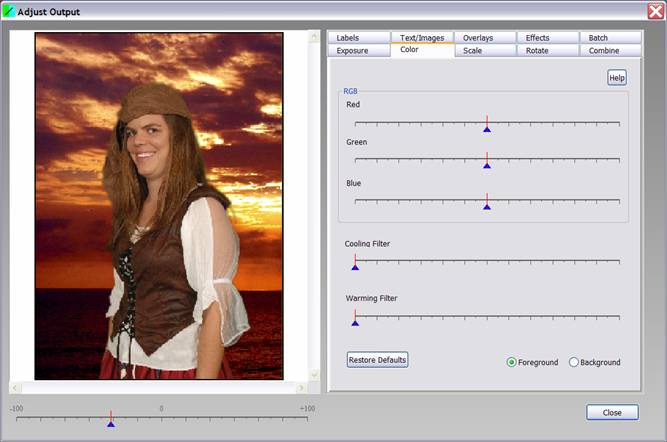

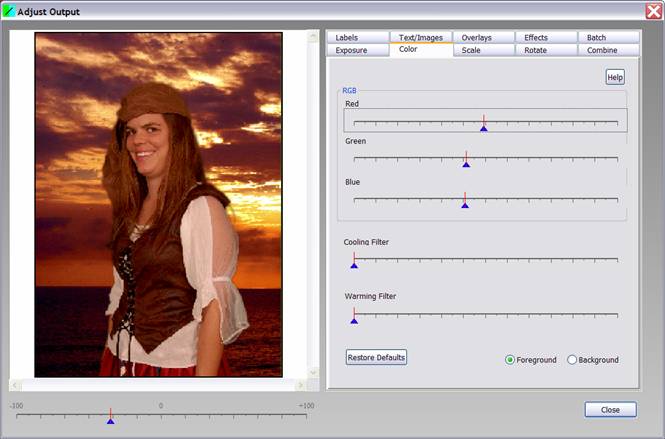

Color Dialog

The Color Dialog lets you alter the hue of a photo. This can correct a photo that was not taken with the right color settings. or it can be use to match the background better as shown below.

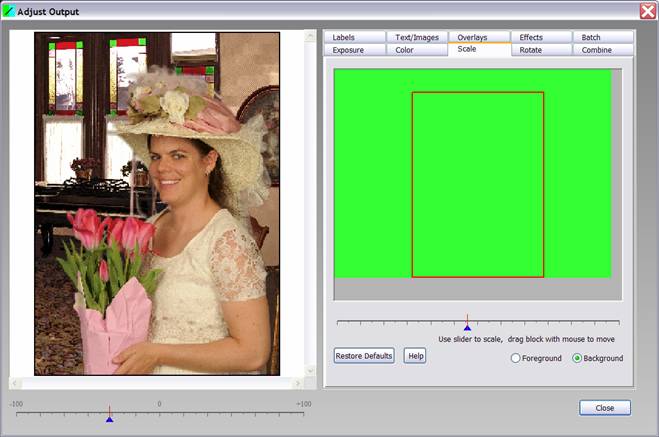

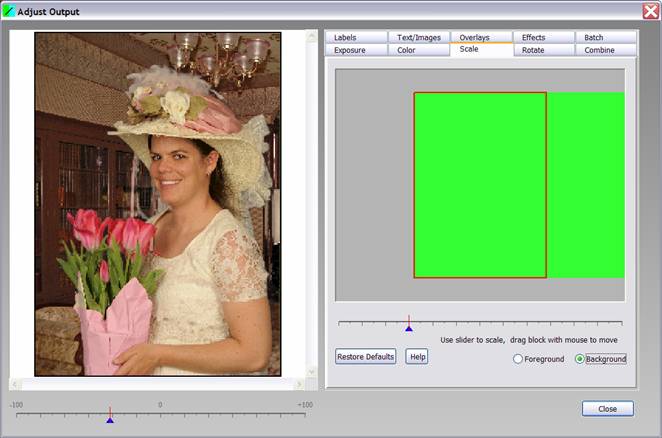

Scaling Dialog

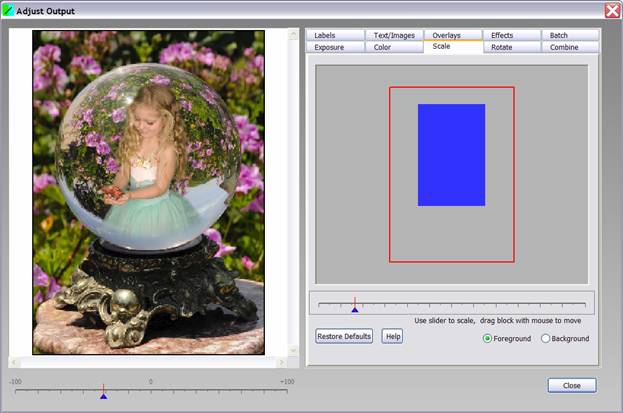

The Scaling Dialog can move and scale the foreground and background independently. The colored box indicates the size of the image when scaled or moved.

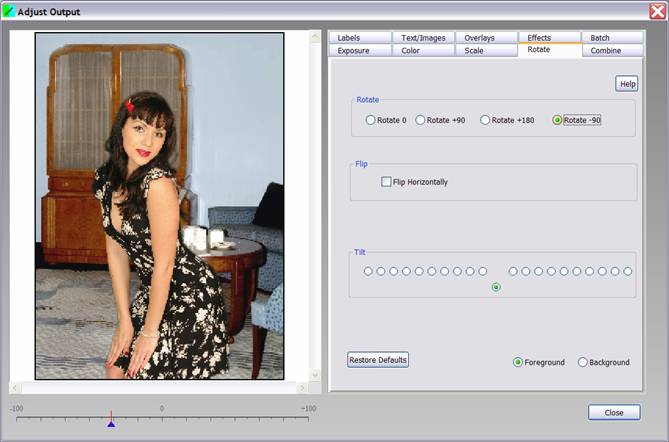

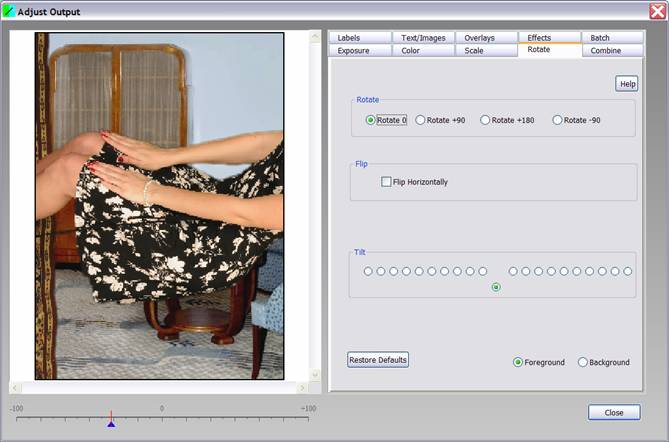

Rotation Dialog



The Rotation Dialog can place images in their proper orientation. It can also perform minor adjustments to a photo's alignment. The flip feature can cause the foreground or background features to appear on the left or the right.

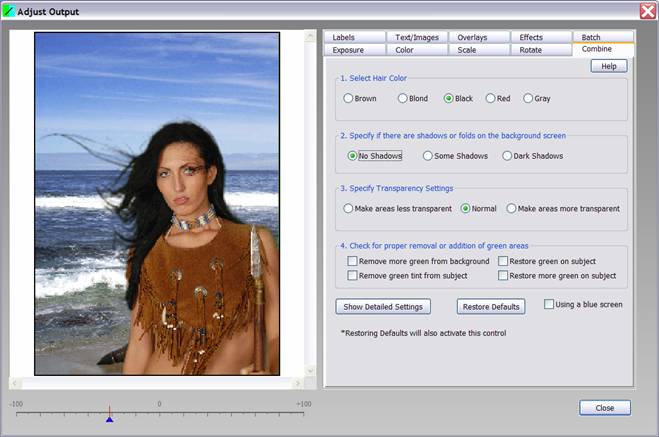

EZ Combine Dialog



The EZ Combine Dialog. While the slider interface will always give the best results, it takes some time to master the interactions of the sliders. To help occasional users and to save pro users' time, Green Screen Wizard designed a set of radio buttons and check boxes that makes the combine process very easy. If you have a well-exposed background with few shadows on it, then simply selecting the hair color and telling the system there are no shadows will improve most images.

Because Green Screen Wizard does not know if there are shadows on the screen or if there is black hair it needs some user input to determine the best output. The defaults will remove a bit more hair but usually give a clear background.

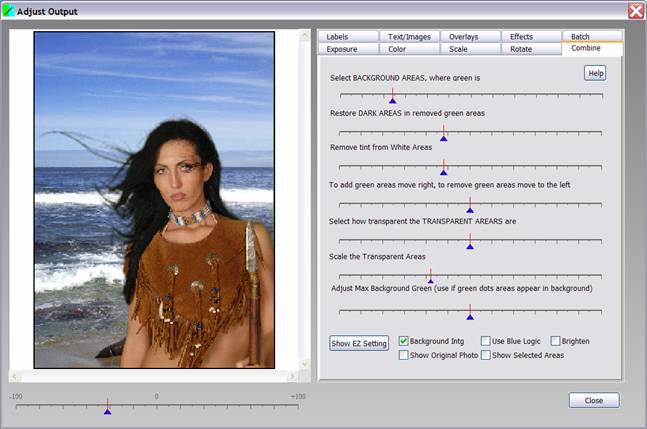

Clicking on “Show Detailed Settings” will show the slider style interface for users that want detailed control on how images are combined.

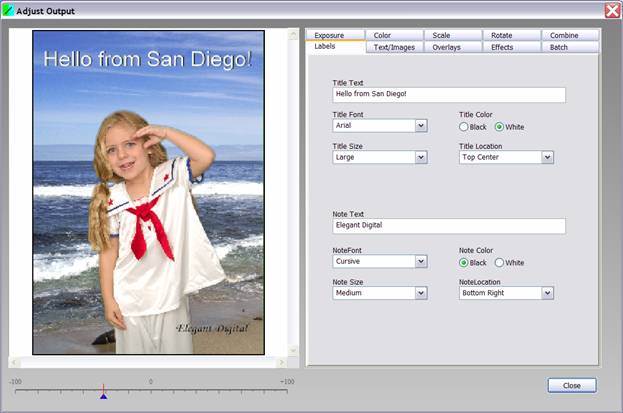

Label Dialog



It is often desirable to put simple text onto a photo.  It may be the date of the photo or a title for the photo, or perhaps simply the name of the photographer.  While Green Screen Wizard Pro provides a very full featured annotation capability, it was felt that a simple text capability should be provided for Green Screen Wizard Full and Lite users. It was further felt that the simplicity of this dialog would be of use even to pro users.  The dialog allows you to put two strings of text onto the photo.  The first string, called the title, is usually larger and placed at the top of the photograph.  The second string, called the note, is normally placed at the bottom and in a smaller font.  The dialog box allows you to place text in nine positions: there’s top, center and the bottom, and there is left, center and right.  For example if you want a text in the upper left hand corner you would specify top left.  If you want it to be in the bottom center you would specify bottom center.  The dialog box also allows you to set the color to black or white and to pick a font and a size.

This is what the dialog box looks like:

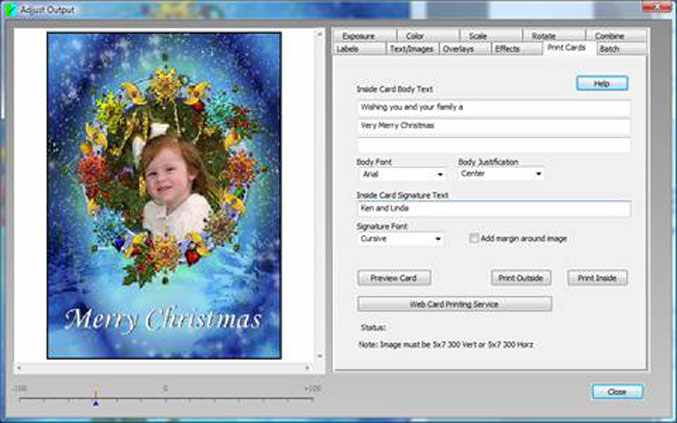

Greeting Card Dialog

Every year people send out millions of greeting cards. Green Screen Wizard can create greeting cards for your clients or yourself. There are several ways of making the creation of greeting cards easier using Green Screen Wizard. First of all we offer greeting card templates that make it easy to create the front of your greeting card. You can also simply create an image and use the text features of Green Screen Wizard to turn an image into a greeting card or invitation. Once you have the front of your greeting card ready you still need to be able to print it and message inside the card. Green Screen Wizard offers a complete card generation system with which you can not only print your own cards but you can submit them to a printing service which will professionally print them for you.



Green Screen Wizard 7 Pro Features


Overlays Dialog



In order to understand some of the Overlay features of Green Screen Wizard Pro 7 it is important to understand the concept of layers.  Think of images pasted on clear plastic sheets.  For example, imagine one plastic sheet simply has the word "hello" stenciled onto it, and a second sheet has just the image of a person on it.  The final sheet has a background on it.  You could take the sheet that has the person pasted on it and move it around the background. This is what Green Screen wizard has always done.  If you took the sheet that has the word "hello" on it and put it above the picture of the person, then the word hello would cover up the person and the background.  If you rearrange the sheets and put the person first, the text second and the background third, you’d see that now the person is covering the text and text is still covering the background. In computer terms these sheet are called layers. In the original version of Green Screen Wizard you had a foreground image and a background layer.  You can think of the background image as the bottom layer and the foreground image as a layer on top of it.  In Green Screen Wizard Pro there are five layers:

We have the Frame Overlay layer, the Foreground Overlay layer, the Foreground layer, the Background Overlay layer, and the Background layer.  Each layer will hide parts of the layers below it.  Layers are of course used by the overlay system, but they’re also used by the annotations system.  The annotations system will let you put text on any layer.  By default text goes on the frame layer which is the highest layer, meaning that the text will cover anything that is shown.  It is possible to put text on the lower layers so that the person may obscure the parts of the text.  The same is true with images. Images can be randomly placed above or behind the foreground layer. This gives the user a tremendous amount of flexibility and creative control.  It is a somewhat difficult concept a master, but once you master layers you will appreciate the flexibility they bring.

As was previously explained, Green Screen Wizard Pro 6.0 has five layers.  The Foreground layer and the Background layer are loaded using the buttons on the main Dialog.  To load an overlay, simply click on the load button and select the overlay that you’d like.  The overlay will be stretched to fit whatever image size you have.  Overlays are presented in both wide and tall formats in some cases.

A new concept in Green Screen Wizard Pro 6.0 is the sandwich overlay.  In this type of overlay there’s a Foreground overlay that has a matching Background overlay.  This has the effect of making the foreground image appear to be sandwiched between the two overlays.  In some cases the Background overlay completely covers the background. In other cases it just provides an interesting context for the foreground image.  In the Full Version of Green Screen Wizard we allow a single overlay so that people can take advantage of our new magazine cover collection and frame collection.  In Green Screen Wizard Pro, magazine covers can be done more correctly. Consider these two covers:





In the Rolling Stone cover Bono is under the Rolling Stone Logo. This can be done with a simple overlay. In the Sports Illustrated cover Maria is “sandwiched” between the cover text and the Sports Illustrated title. This would be done in Green Screen Wizard Pro by having a Foreground overlay with the border and the text and a Background overlay that had the title on it.  As a convenience, if a Foreground overlay starts with “Foreground_” then the system will look for a Background overlay that has the same name but starts with “Background_” . For example the overlay file “Forground_RollingStone.png” would also load “Background_RollingStone.png” if “Background_RollingStone.png” exists.

This shows the Overlay Dialog for Green Screen Wizard Pro. The dialog is the same for the Lite and Full Versions but they only have the Foreground Overlay.

Clicking the load button on the frame overlay panel will bring up the dialog box as shown.

Selecting the gold frame will cause the frame to be drawn over the foreground image and the background.  You can shift and scale the image to fit the frame. This is a simple but very effective technique.

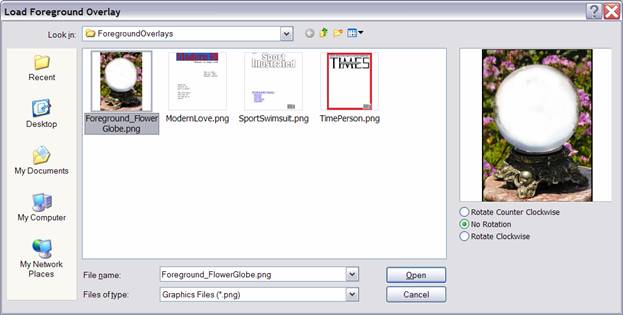

Select a foreground overlay by hitting the load button in the foreground overlay section. Let’s first load a simple magazine overlay intended for Green Screen Wizard Full.  As you can see, the overlay title is covering part of the model. In Green Screen Wizard Full we would make the model smaller to avoid this, as shown.

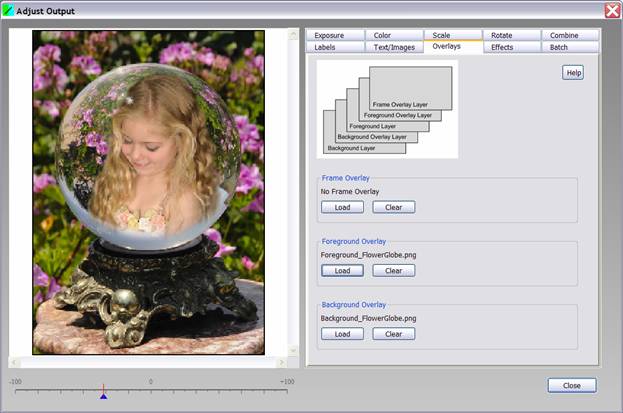

An example of the sandwich overlay is the crystal ball. This is a really cool effect. Simply load the foreground crystal ball overlay and then the background overlay of the crystal ball is loaded for you.

Note how the foreground and the background images were both loaded.

You may have to resize and reposition the foreground and background images to make sure they are placed in the proper position so the images are shown properly.





Airbursh Editor

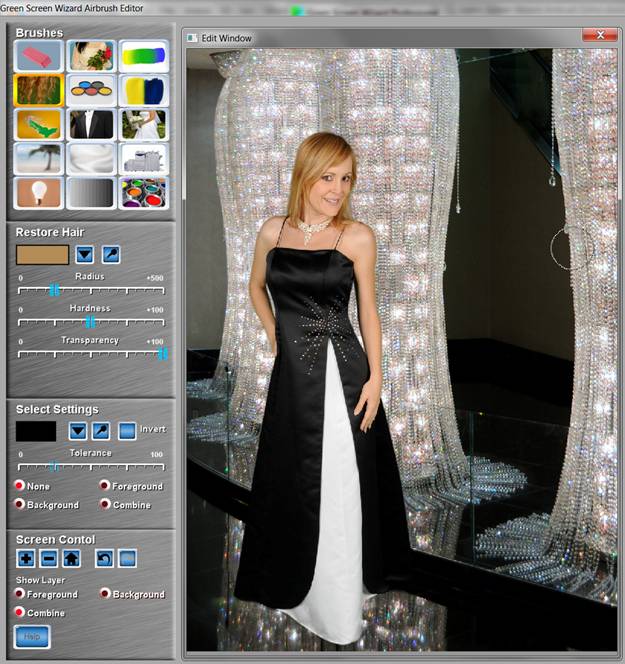

The Green Screen Wizard Airbrush Editor is the next step in the evolution of green screen software. In the past clever algorithms had two jobs. The first job was to determine if a color in the image was part of the foreground or part of the background. The second job was to act on the color to remove it, blend it with the background or just change its color. Both actions required a lot of guesswork on the part of the algorithm.


With the Green Screen Wizard Airbrush Editor you can use brushes to give the algorithm more information about the image and what part of the image needs to be changed. For example you can use a brush to erase areas of the screen that have shadows on it. If someone is holding green flowers or has on a green shirt you can use the Editor to restore the green color. The most amazing brush in the Editor is the hair brush. With this brush you can tell the algorithm the exact hair color you're looking for and it will attempt to process any green areas that might possibly contain the selected hair color. This results in the very best hair restoration possible.

There are nine specialty brushes that make green screen processing more powerful

1.     Erase Background - To replace the foreground with the background

2.     Restore Foreground - To restore green areas, like flowers and clothing

3.     Blend - This blends the foreground and background for wedding veils and transparent areas.

4.     Hair - Lets you select hair color and then extract it

5.     Filter- Like hair but you select a cloth color

6.     Blend Edges - Smooth Edges

7.     Spill - To remove Green Spill

8.     Restore Black - Restore Black

9.     Restore White - Restore White

In the old days of black-and-white photography is was very easy to airbrush photos. Most of the movie stars of the time had flawless skin due to the skill of these airbrush retoucher's. With color photography this became a little more challenging. The airbrush Editor's second mission is to make touching up color photos a simple matter.

1.     Blur - Will blur the skin for a softer look

2.     Smooth - Will take out variations in skin tone

3.     Copy - Copy's one section of the photo to another

4.     Brightness - Change the brightness of any section of the photo

5.     Contrast - Change the contrast of any section of the photo

6.     Paint - Paint any color to add color to skin, or eye shadow



Pick Background from Gallery Button

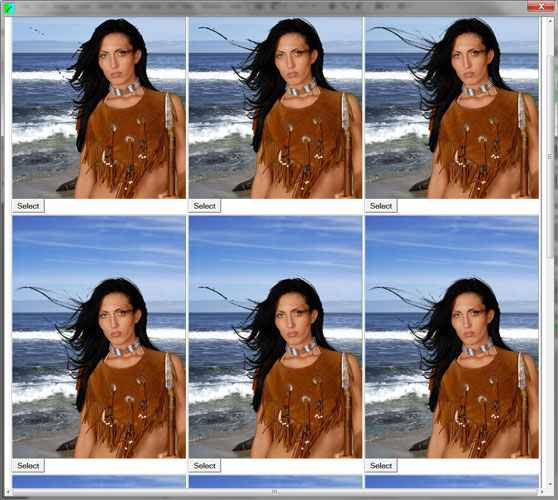

With green screen photography there are always many backgrounds to choose from.  Selecting them one at a time to show a client can be a time consuming process.  The new gallery feature allows you to place a number of your favored backgrounds into a Gallery folder or the folder you specify with the select pick directy button on the defaults tab in the tools menu.  When the Pick button is clicked, the foreground that is currently on display is merged with all of the backgrounds in the Gallery folder.  The Galley Dialog then displays all your choices. If you click the select button by one of the choices then that background will become the current background.

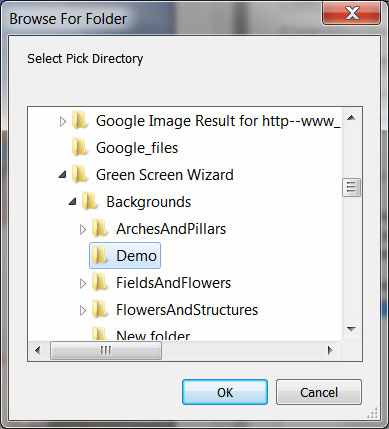

The Pick Folder

By defaut the Pick folder is the demo images stored under Documents/GreenScreenWizard/backgrounds/demo

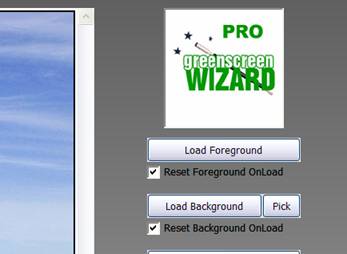

The Pick Background from Gallery Button is located next to the Load Background button in the Pro Version.

After the Pick button has been pushed the Last File Processed dialog box will appear that will show the foreground image with the next background as they are individually processed.  When the processing is complete an HTML page will be displayed that will show all of the images simultaneously. You simply select the image that you like and it will be brought into Green Screen Wizard Pro.

This dialog shows the foreground image being merged with a background:

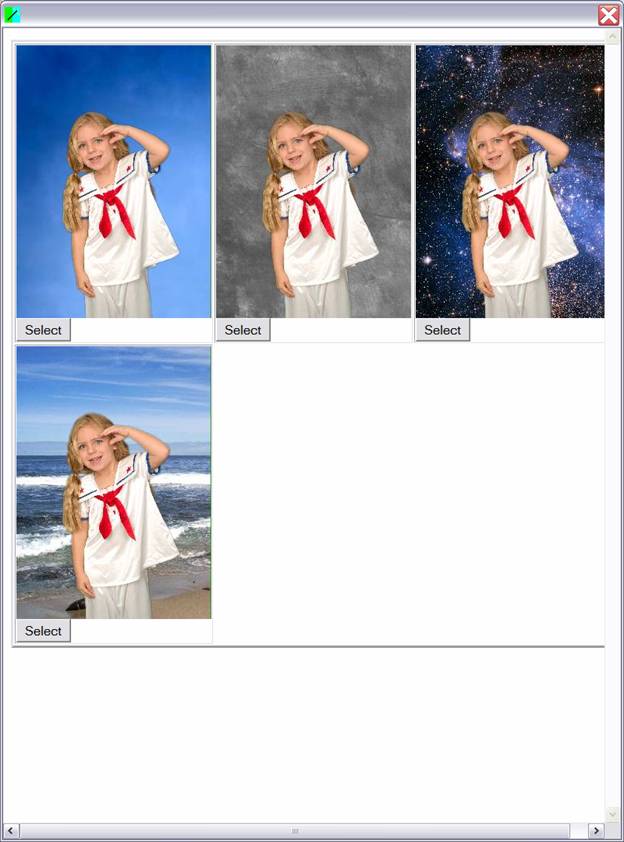

This shows the gallery selection page. Clicking the Select button will load that background into Green Screen Wizard Pro.







Annotation Dialog



The annotation dialog is a very complicated but powerful dialog.  It can output simple text, paragraphs of text, thought bubbles, and place random images.

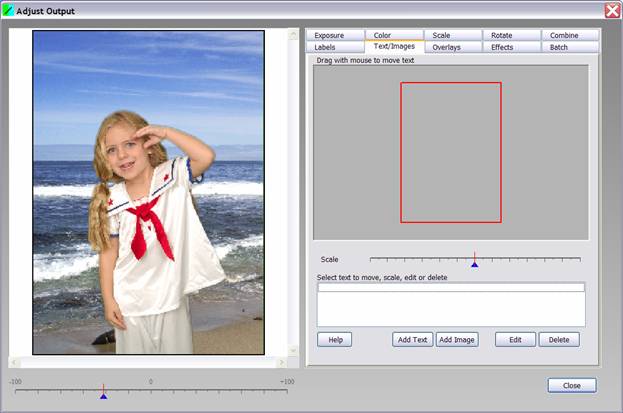

The annotation dialog is shown below. The first thing you must do is decide if you want to add text or images.

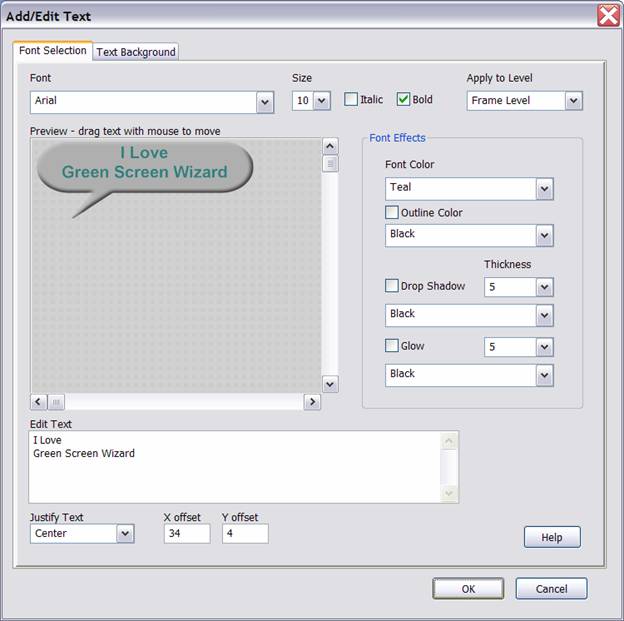

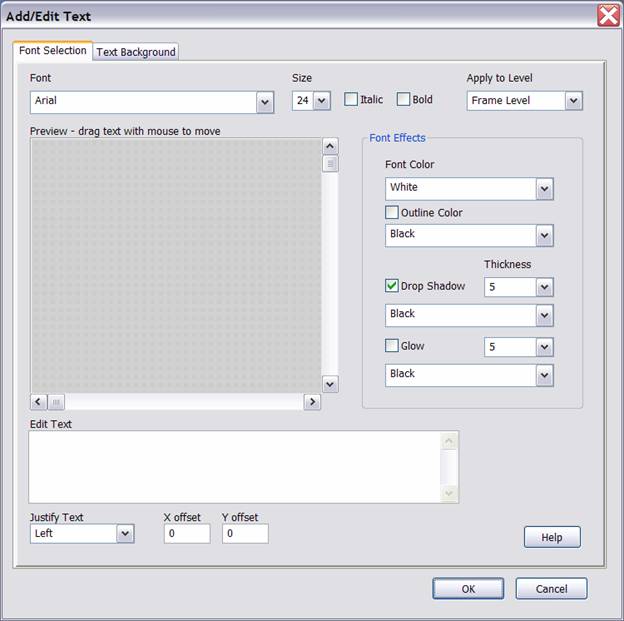

Selecting the add text button will cause the following dialog to pop up:

This is the dialog for creating complex text. It allows you to specify just about every font option including font type, color, size, bold, and italic. It also supports three effects: outline, drop shadow, and glow.



The edit text control lets you enter multiple lines of text that can be justified using the Justify Text selector.

Once you have entered text in the text window you may preview the effect of the various dialog boxes in the preview window.  For example if we wanted red text with a black outline and a gold glow, allin a Calligrapher font, these would be the settings:

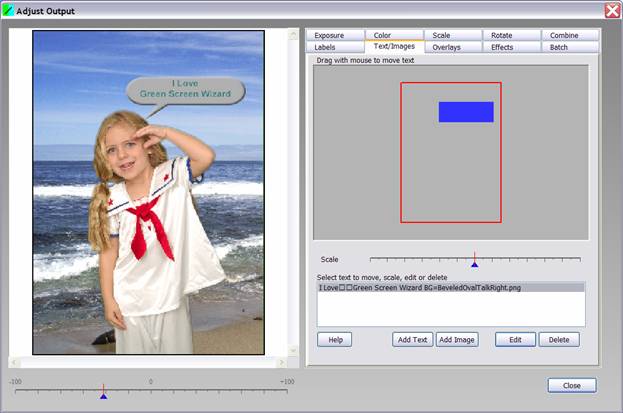

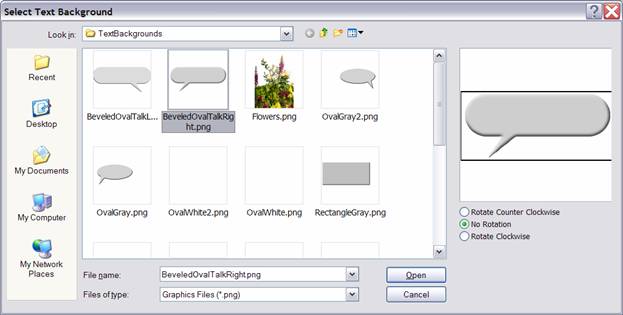

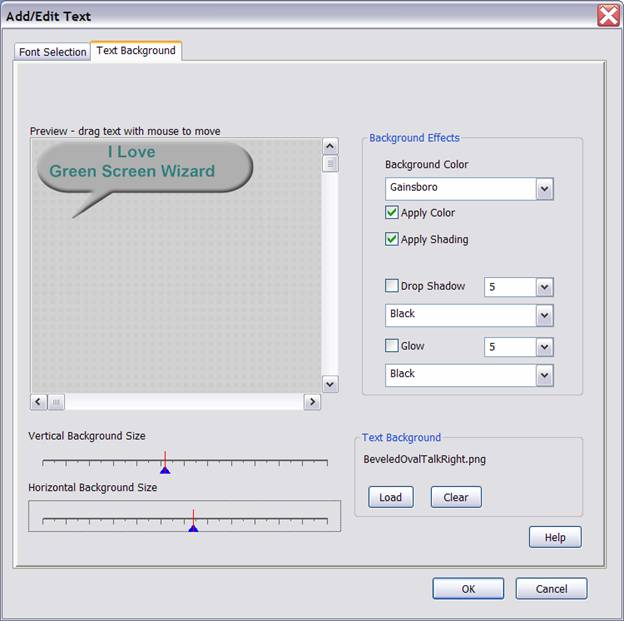

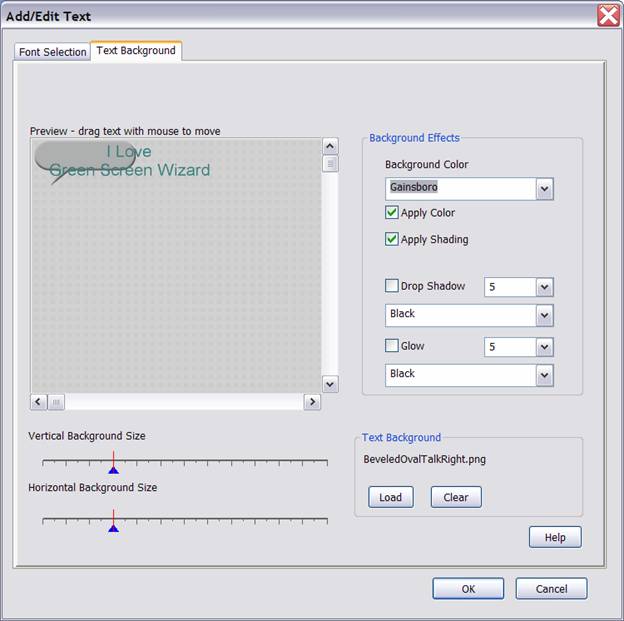

Often text is displayed in a box, or in what is called a thought bubble.  Green Screen Wizard Pro allows you to enter any kind of background for the text.  If the background is neutral in color, then Green Screen Wizard Pro can change the color of that background to any color you like.  You can also apply effects like drop shadow and glow to the background.  Because backgrounds can have irregular shapes, Green Screen Wizard Pro does not automatically place the text in the background for you.  It has to be dragged to the correct location in the background.  This dialog shows speech bubble and the text that should be displayed in it.  As you can see the speech bubble is too small for the text.  We can fix that by using the sliders to change the size of the speech bubble.  Once we have the bubble the proper size, we can use the mouse to drag the text into the proper position.

We then leave this dialog and return to the main text window.  As you can see a large blue square indicates where the text will be placed in the image.  We can move the text by dragging the square with the mouse.  The first picture shows the original position of the text and the second, after we’ve dragged it to where we want it.

Let’s add another text item, the text “Pro Version 6.0.”



When we return to the dialog we see that we still only have one blue box.  The blue box that is showing is the selected text in the select text control.  If we use our mouse to select the other line, then the blue box will indicate the position of that text.  To edit the text simply click the edit button and the text that is highlighted will be placed back into the text dialog.  We can then change the text or text properties. We may also delete the text by clicking the delete button.

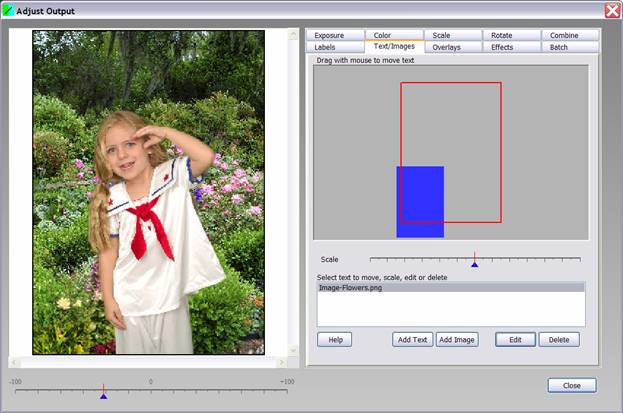

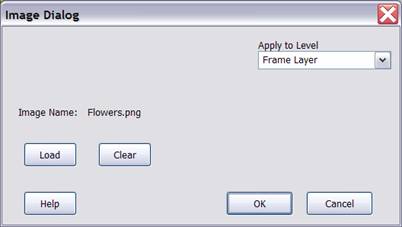

The image button is a simplified version of the text dialog.  It allows you to place an image randomly on the page.  You may place a few flowers in strategic positions or perhaps a little hat on a baby. There is no limit to what you can do using this feature.

Notice how the image is placed in front of the girl. If we change the layer to be placed on the background the image will go behind the girl.

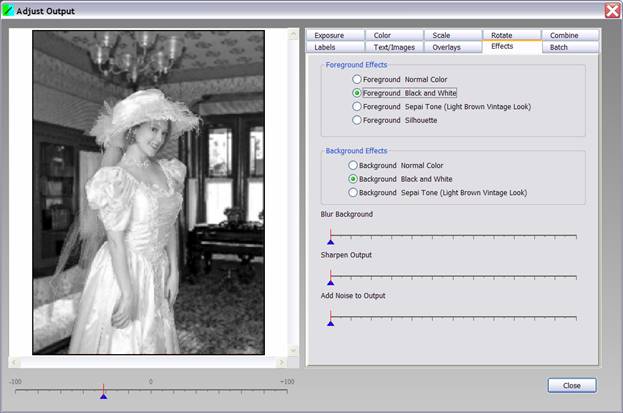

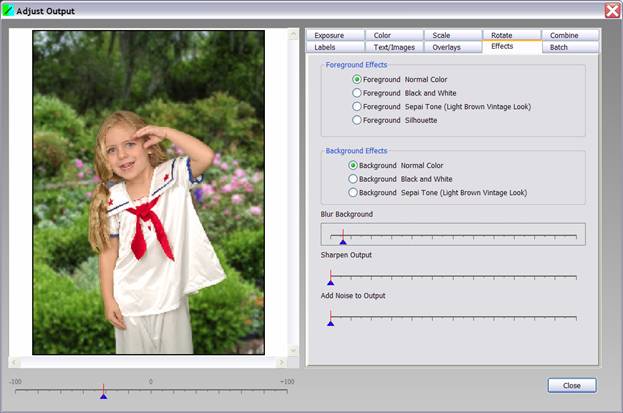

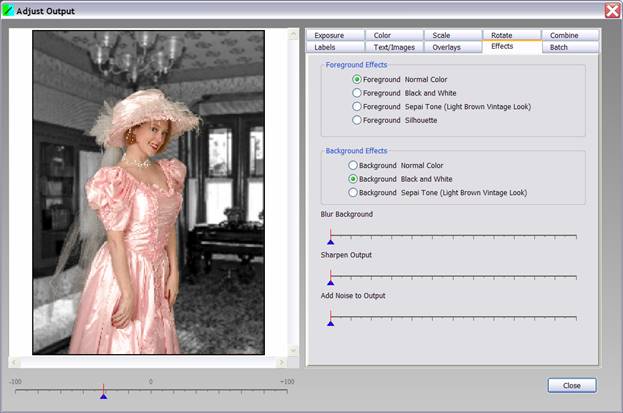

Effects Dialog

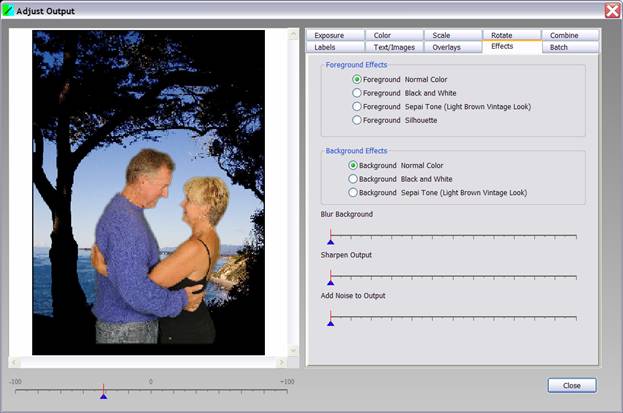

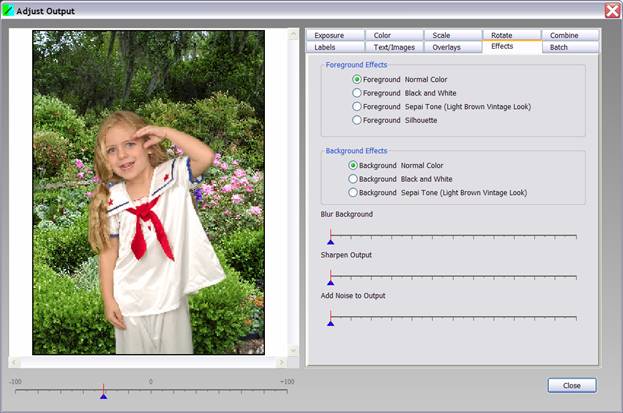

Green Screen Wizard Pro 7.0 offers special effects.  Most of the effects can be applied to the foreground image or the background.  The first effect alters the image's color.  An image can be rendered in full color, black and white, sepia, or if it is a foreground image, as a silhouette.  The silhouette feature can create dramatic images with very little effort.  Simply have someone hold an interesting object or look to the right and you have very interesting silhouette.  Here are some examples of these features:

Black and white image

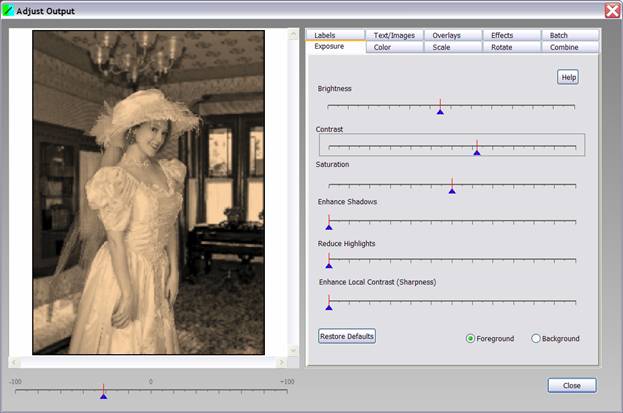

Sepia tone image

Color image on black and white background

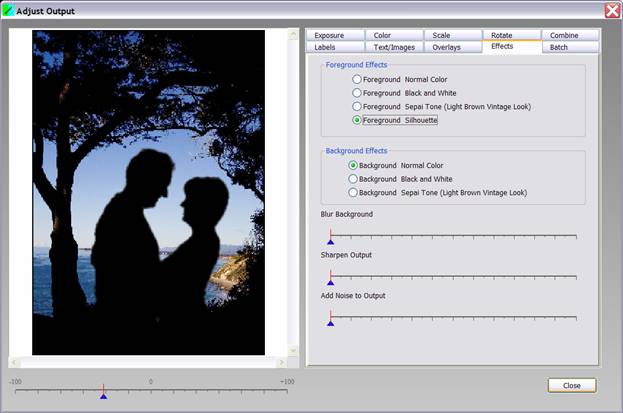

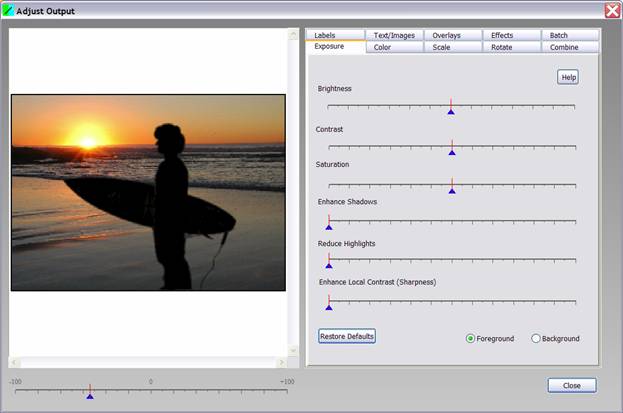

Some silhouette examples



Often when pictures are taken in the real world the foreground image is sharp and the background is blurry.  In photographic terms this is called depth of field.  It is actually a flaw in the way lenses work.  If a lens was perfect it would focus perfectly at all depths.  Green Screen photography allows perfect depth of field. However, the final photos do not look as if they were taken with a real camera.  To correct this Green Screen Wizard Pro allows you to slightly blur the background.  This makes for more realistic photo and also tends to make the foreground image stand out better.  To obtain this affect, simply slide the Blur Background slider to the right.

Here’s a normal Green Screen Wizard Pro photo.

Here’s one with a slightly blurred background.

Digital images are often quite soft. You can use the Sharpen Output slider to fix this.  The sharpening is applied to the final output image.

Sometimes, particularly if you try to make a photograph look old, you’d like to introduce a little noise into the new photograph.  This can be done with the noise slider.





Shadow Generator

To add realism to your photos you sometimes may want to add a shadow. Green Screen Wizard provides three separate shadow generators. The first generator will create a wall shadow. This is the easiest generator to use and the most common. The second generator is a floor generator that will put a shadow on the ground. This generator is a little more complex as the shadow can be skewed left or right and can be large or small. You also have to align the shadow with the feet of the image. The final show generator will cast a shadow on the floor and on the wall. It is of course the most complex but also can create dramatic results.

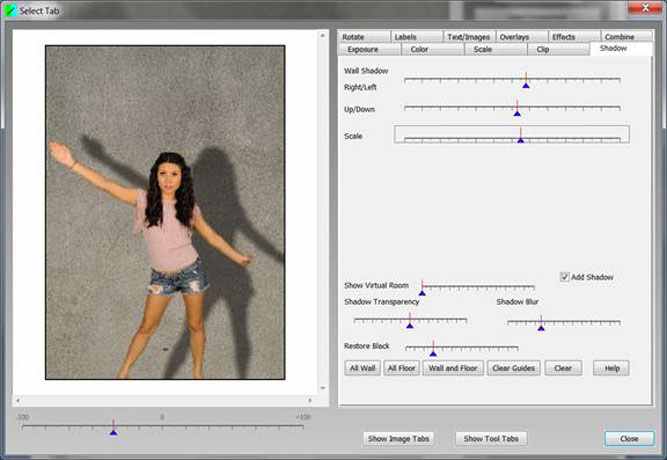

Wall Shadow

Floor Shadow

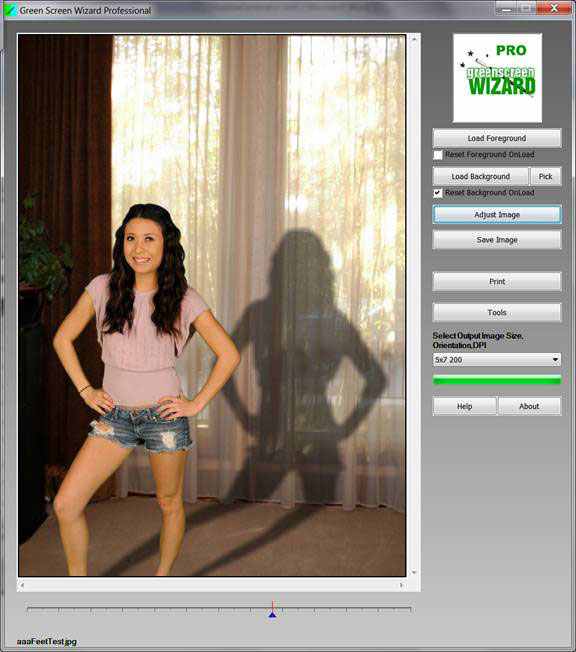

Floor and Wall Shadow



Green Screen Wizard 6.0 Pro Batch Features


Batch Processing



Batch is the most requested feature that is present in Green Screen Wizard Pro 7.  Unlike a normal batch process where a file is merged or processed, Green Screen Wizard Pro 7 allows you to take two sets of files, a foreground set and a background set, and multiply the two together.  For example if I had five backgrounds and three different foregrounds then I would have 15 images when the process was done.

Green Screen Wizard Pro 7 now stores all of the settings that created a file in the file itself.  Refer to the explanation of GSW files earlier. The batch process can use these files in three ways. It can take the current image and just change the settings. It can take the current image and replace the settings and the background, or it can take the current image and replace the foreground and replace the settings.

Lets try a few examples:

The simplest example is to take the current image and replace the foreground image in the file. You would do this, for example, if you took photos of a baseball team and wanted to use the same background with each photo. To do this we specify the directory that has a foreground image as we’d like to merge. Then we specify the output directory where we would like them to go, and then we start the batch.  The process will continue until every file in the batch folder has been merged.

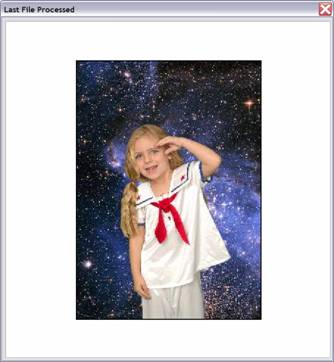

This dialog shows the last file processed:



Here is the output from the batch run.

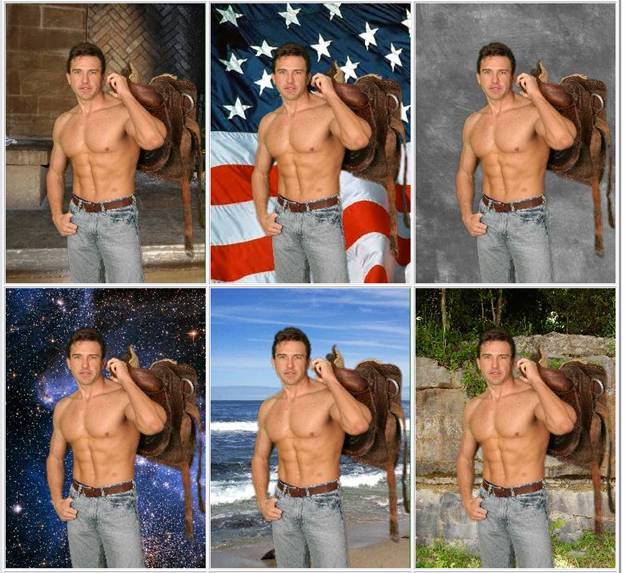

Next let’s take our current image and replace the background with all of the backgrounds found in a given directory.  We do this by selecting the background directory and running the background process.

If we specify both a foreground directory and a background directory, then for every foreground an image is created with every background.




Now let’s see what would happen if we specify a directory that has GSW files in it.

We choose to let the GSW file override the background by checking the “Use GSW Background”.

Here’s what the GSW files looked like.

Here is the output from the GSW batch.

Note how the foreground image is scaled and shifted by the GSW files. Also text and overlays can be added. With this ability you can create your best “looks,” and then create output for each look.

The batch system can produce low resolution thumbnail output, but by default it creates high resolution normal output.  This is controlled by the output low resolution checkbox.

You may also select to renumber your output and select the type of output.

By default the batch process creates an HTML file that allows the user to view all of the files processed simultaneously. This can be switched off by unchecking the Create HTML check box.

Once a batch process has created all of its files, the process terminates.  If you check the box that says “Keep Checking for New Files,” after the last file is processed the batch system will sleep for 1 second, and then it will look to see if there are any new files in any of the specified folders. If it finds one or more it will process them and then display the last result in the last result box.  This is a handy feature if you’re doing tethered shooting. Every time the camera stores a new file in a watched directory that file will be processed and displayed.





Batch Printing

The Batch Process can create hundreds of images. The batch printing process was created to allow you to simply and easily print these images out. You start this process by selecting the output printer. Next you select the printer template that you'd like to use for all of the images. You can pick a template that has more than one image on the page. Finally you select the folder of images you'd like to print. An indicator will show you how many images are to be printed. Simply click start and the printing will begin.

You can watch the folder for the arrival of new images. Each time a new image is found it will be printed. Images can be placed in the folder by other copies of GreenScreenWizard or by the batch process or if you're tethering your computer tethering software.



Email Sending

Sending an e-mail with the green screen image attached has many advantages. First of all paper and ink are expensive so you save a lot of money on printing. An image that is e-mailed to a person can easily be forwarded to other people so if for example you're creating an ad showing a person standing next to a car is in your best interest that these images be passed around.

To use the e-mail feature you must first set up the mail server. Read the help file that is part of the mail server dialog to help you set this up. Once you have the server setup can put in a message for whatever event you're doing and then when you're ready to send an e-mail all you need is a person's e-mail address and away it goes.

Setup Email

Setup Email Server

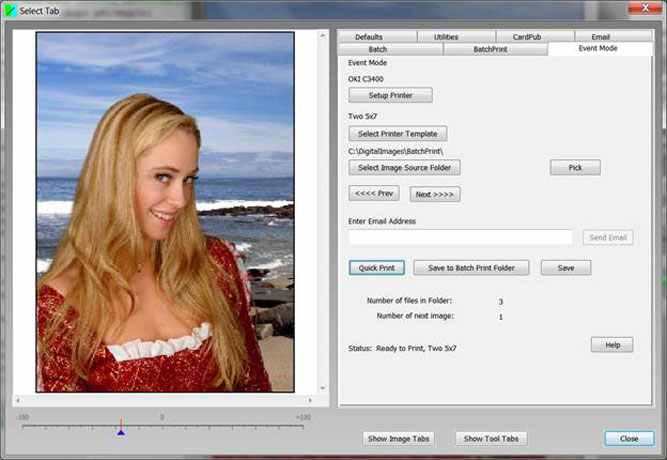

Event Mode

If you're at an event like a wedding, or conference and you have people standing in line waiting for a photo then there is a lot of pressure to shoot very quickly. We created event mode to solve this problem. The way it works is you set up your printer, and your printer template, and you select a folder where images will be placed before you start shooting. Unlike batch processing not all of the images will be processed all at once. In event mode you can use the next and previous buttons to scroll through the images in the folder. The advantage of this is that you can make corrections or change backgrounds on an individual photo but you do not have to use the slower main interface that makes you select the printer, and printer template each time you print and requires a file name for every image you want to save. This process also supports tethering in that suddenly you will have more images to scroll through as the images arrive from your tethered camera.
